Description
| Range of product | Modicon Quantum automation platform. |
|---|---|
| Product or component type | Unity processor. |
| Mode of transmission | Multi mode. |
|---|---|
| Clock frequency | 266 MHz. |
| Number of slots | 10 16 2 4 6 |
| Number of racks | 2: local rack(s). |
| Number of distributed I/O station | 63 station(s), 1 rack(s), and 3 Modbus Plus network(s). |
| Number of remote I/O station | 31: 2 rack(s) per S908 remote I/O. 31 – 2 rack(s) per ethernet Quantum remote I/O. 31: 2 rack(s) per Ethernet X80 remote I/O. |
| Discrete I/O number | 31744 inputs, 31744 outputs, remote. 8000 inputs, 8000 outputs, distributed per network (Modbus Plus). Unlimited (31 drops of 28 slots max) ethernet remote I/O. 0 (local) is forbidden in Hot Standby application. |
| Analogue I/O number | 500 inputs, 500 outputs, distributed per network (Modbus Plus). Unlimited (31 drops of 28 slots max) ethernet remote I/O 1984 inputs, 1984 outputs, remote. 0 (local) is forbidden in Hot Standby application. |
| Application specific I/O | Serial link. High-speed interrupt inputs. Counter. Accurate time stamping. |
| Communication service | Ethernet router. |
| Number of optional modules | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max). |
| Maximum number of connections | 1 USB. 2 AS-Interface: distributed. 4 AS-Interface: remote. 6 Ethernet TCP/IP (local). 6 Modbus Plus: local. 6 Profibus DP, local. 1 Modbus (RS232/485 Modbus/ASCII). |
| Integrated connection type | 1 Modbus Plus with. 1 Modbus with. 1 USB with. 1 optic fibre with Hot Standby. |
| Checks | Hot standby. Process control. |
| Memory description | Expandable 7168 kB program with PCMCIA card. Expandable 8 MB of file storage with PCMCIA card. Internal RAM: 3072 kB to 1536 kB for data. |
| Switch function | Key switch memory port on/off. |
| Application structure | 1 periodic fast task—forbidden in Hot Standby application. 128 I/O interrupt tasks are forbidden in Hot Standby. application 128 interrupt tasks are forbidden in Hot Standby application. 32-timer interrupt tasks are forbidden in Hot Standby. application. 4 auxiliary tasks are forbidden in Hot Standby application. 1 cyclic/periodic master task . |
| Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean. 10.07 Kinst/ms: 65 % Boolean and 35 % numerical. |
| System overhead | 0.2 ms for fast tasks. 1 ms for the master task. |
| The current bus requirement | 2760 mA. |
| Local signalling | 1 LED (yellow) for Ethernet activity (COM). 1 LED (yellow) for configuration status (STS). |
| Electrical connection | 1 female connector, connector type: SUB-D 9, for connecting to the Modbus Plus network. 1 connector, connector type: RJ45, for connecting Modbus buses. 1 connector, connector type: MT-RJ (multimode fiber optic). for interconnecting primary and secondary PLCs up to 4 km. |
| Protective treatment | Conformal coating: Humiseal 1A33. |
|---|---|
| Product certifications | IEC-Ex. CE GOST. UL CSA Misc (Marine). ATEX zone 2. |
| standards | HazLoc. |
| Unit Type of Package 1 | PCE. |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1: Height | 11.0 cm. |
| Package 1: Width | 18.5 cm. |
| Package 1 Length | 32.5 cm. |
| Package 1: Weight | 1.424 kg. |
| Unit Type of Package 2 | S03. |
| Number of Units in Package 2 | 2 |
| Package 2: Height | 30.0 cm. |
| Package 2 Width | 30.0 cm. |
| Package 2 Length | 40.0 cm. |
| Package 2: Weight | 3.363 kg. |
Overview

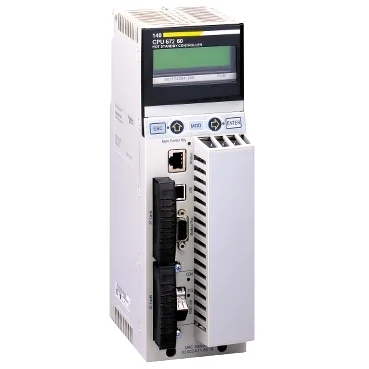

The 140CPU67260C is a powerful and versatile central processing unit (CPU) in the Modicon Quantum series by Schneider Electric. Designed for complex and demanding industrial applications, this CPU serves as the brain of the Quantum automation platform, enabling high-performance control and automation tasks across a range of industries. It combines advanced processing capabilities with reliability, making it suitable for applications that require precision, speed, and high availability.
Key Features
- High Processing Power The 140CPU67260C features a robust processing unit capable of handling extensive computations and complex algorithms. It operates with a 32-bit processor and supports high-speed operations, which is crucial for applications requiring real-time processing and high data throughput.
- Extended Memory Capacity This CPU comes equipped with a large memory capacity, including both volatile and non-volatile memory. It offers substantial RAM and storage for program and data management, allowing users to develop sophisticated control strategies and store extensive historical data.
- Advanced Communication Capabilities The 140CPU67260C includes multiple communication ports and interfaces, such as Ethernet, Modbus, and Profibus. These features enable seamless integration with various field devices and other automation components. The CPU supports both standard and high-speed communication protocols, facilitating efficient data exchange and system interoperability.
- Scalability and Flexibility The Modicon Quantum platform is designed with scalability in mind. The 140CPU67260C can be integrated into systems of various sizes, from small standalone setups to large, distributed control networks. Its modular architecture allows users to expand the system as needed by adding additional I/O modules and communication processors.
- High Availability and Reliability The CPU supports redundant configurations and fault-tolerant features, ensuring high availability and minimizing downtime. This is crucial for mission-critical applications where system reliability is paramount. The 140CPU67260C is designed to provide consistent performance even in the face of hardware failures or network issues.
- User-Friendly Programming Programming and configuring the 140CPU67260C is facilitated by Schneider Electric’s software tools, such as Unity Pro. These tools offer a user-friendly interface for developing and debugging control programs. They support various programming languages, including ladder logic, structured text, and function block diagrams, making it easier for engineers to create and maintain complex control applications.
- Advanced Diagnostic and Monitoring Features The CPU includes built-in diagnostic and monitoring capabilities, which help in identifying and troubleshooting issues within the system. Real-time diagnostics, error reporting, and system status monitoring provide valuable insights into the health and performance of the automation platform.
- Safety and Compliance The 140CPU67260C adheres to international safety standards and certifications, ensuring that it meets the rigorous demands of industrial environments. Its design incorporates safety features that protect both personnel and equipment, aligning with industry best practices for safety and reliability.
Applications
The 140CPU67260C is suitable for a wide range of industrial applications, including:
- Manufacturing Automation: is used in complex manufacturing processes that require precise control and monitoring, such as automotive assembly lines, food and beverage production, and chemical processing.
- Process Control: Ideal for managing and controlling process industries, including oil and gas, pharmaceuticals, and water treatment facilities. Its high processing power and communication capabilities enable real-time monitoring and control of various process parameters.
- Energy Management: Applied in energy management systems, including power generation, distribution, and renewable energy applications. Its reliability and scalability make it suitable for managing large-scale energy infrastructure.
- Transportation and Infrastructure: Utilized in transportation systems, such as railway signaling and airport operations, as well as infrastructure projects like water and wastewater treatment plants.
Integration and Compatibility
The 140CPU67260C integrates seamlessly with other Modicon Quantum modules and accessories, creating a cohesive automation system. Its compatibility with a wide range of I/O modules, communication processors, and other control devices allows for customized solutions tailored to specific application needs. Additionally, it can interface with third-party devices and systems through standard communication protocols.
Conclusion
The 140CPU67260C Modicon Quantum Automation Platform represents a high-performance solution for industrial automation, offering advanced processing capabilities, extensive communication options, and high reliability. Its versatility makes it suitable for a broad spectrum of applications, from manufacturing and process control to energy management and infrastructure. With its robust design and comprehensive features, the 140CPU67260C is a valuable asset for engineers and system integrators seeking a reliable and powerful automation platform.
