Description

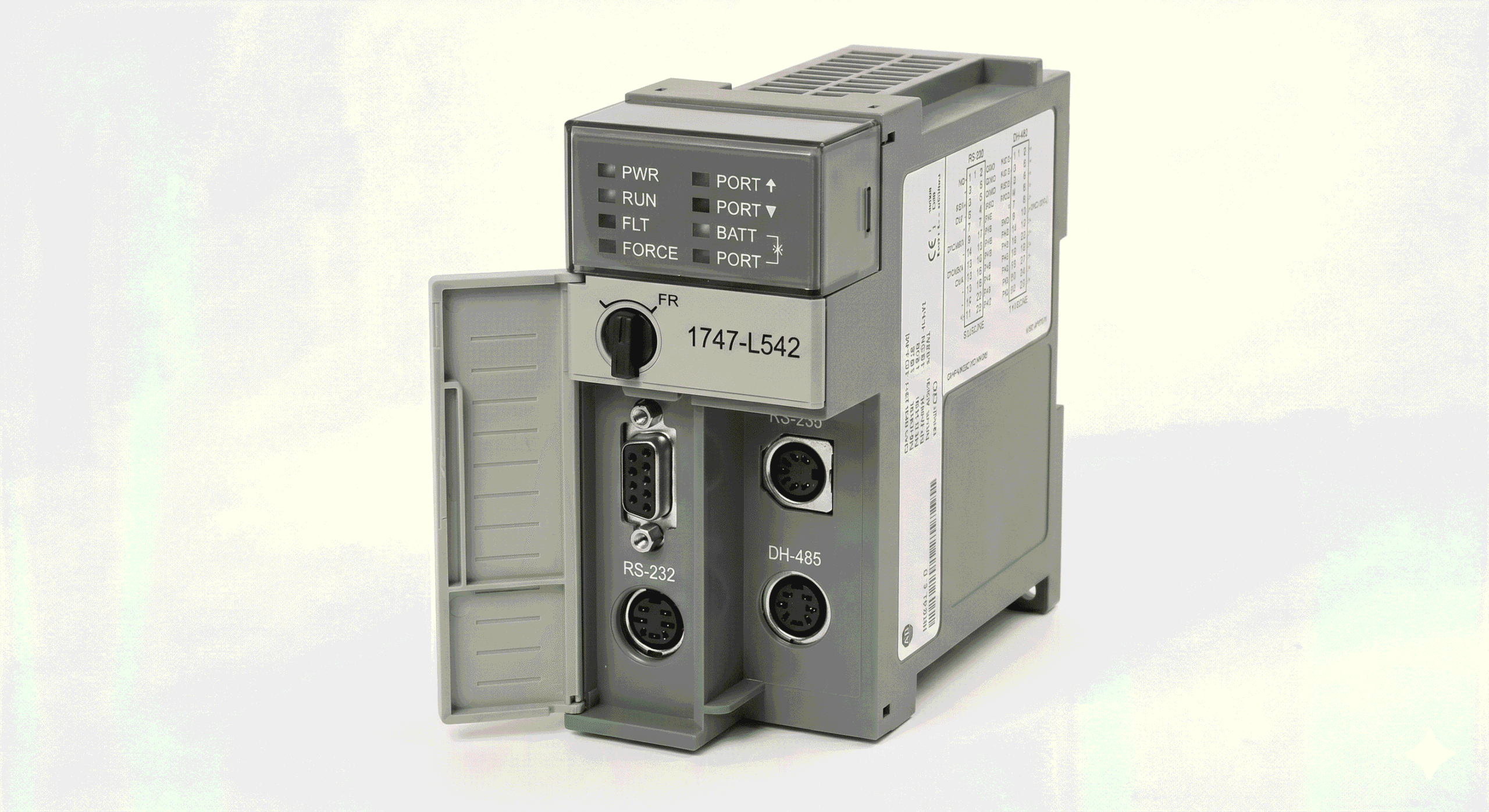

Technical Specifications for 1747-L542
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1747-L542 |
| Series | SLC 500 |
| Inputs | 4096 |
| Module Type | SLC 5/04 Processor |
| Outputs | 4096 |
| Analog I/O | 480 |
| Memory: | Up to 32 KB of battery-backed RAM |
| Program Scan Time | 0.9 ms/K |
| User Memory | 32,000 Words |
| I/O Chassis | 3 |
| Chassis Module Slots | 30 |
| I/O Scan Time | 0.225 milliseconds |
| Communication | Data Highway Plus (DH+), RS-232 |
| Backup Memory | 1747-M13 |
| Ambient Temperature | 0 to 60 degrees Celsius |
| Battery back-up memory: | Yes; 1747-BA |
| UPC | 662468417457 |
| UPC | 10662468417454 |
| UNSPSC | 32151705 |
Key Features of the 1747-L542 Processor Module
- High Performance: The 1747-L542 is equipped with a powerful processor capable of handling complex control tasks. It features a fast execution speed, which ensures quick response times for real-time applications.
- Memory Capacity: The module includes substantial user memory, with 32K words available for program storage and data. This allows for the development of extensive and sophisticated control programs.
- Integrated Communication: The 1747-L542 features integrated communication ports, including DH+ (Data Highway Plus) and RS-232, enabling easy connectivity and data exchange with other devices and systems in the network.
- I/O Support: This processor module supports a wide range of I/O modules, making it highly adaptable to different application requirements. It can interface with various analog and digital I/O modules for comprehensive process control.
- Modular Design: The SLC 500 series is known for its modular design, and the 1747-L542 is no exception. This design allows for easy system expansion and customization, as additional modules can be added as needed.
- Ease of Programming: Programming the 1747-L542 is straightforward, thanks to Rockwell Automation’s RSLogix 500 software. This user-friendly programming environment supports ladder logic programming, making it accessible for engineers and technicians.
Applications of the 1747-L542 Processor Module
The versatility and reliability of the 1747-L542 make it suitable for a wide range of industrial applications, including:
- Manufacturing Automation: Controlling assembly lines, robotic systems, and machinery to improve productivity and ensure consistent product quality.
- Process Control: Managing complex processes in industries such as chemical processing, food and beverage, and water treatment, ensuring precise control and monitoring.
- Material Handling: Coordinating conveyor systems, automated storage and retrieval systems, and other material handling equipment to optimize logistics and material flow.
- Energy Management: Monitoring and controlling energy usage in industrial facilities contributes to energy efficiency and cost savings.
Benefits of the 1747-L542 Processor Module
- Reliability: The 1747-L542 is known for its robust and reliable performance, which is crucial for maintaining uptime and productivity in industrial environments.
- Flexibility: Its modular design and wide I/O support make it adaptable to various applications and easy to expand as system requirements grow.
- Ease of Use: With integrated communication ports and user-friendly programming software, the 1747-L542 is easy to set up, program, and maintain.
- Cost-Effective: The SLC 500 series, including the 1747-L542, offers a cost-effective solution for industrial control, providing high performance at a reasonable price.
