Description

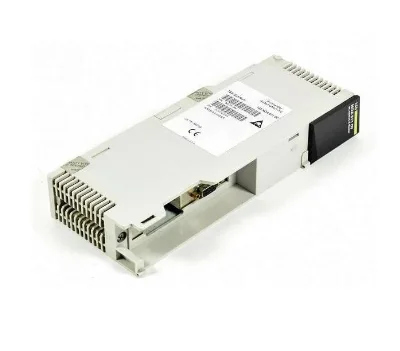

The 140NOA61110 is a module in the Modicon Quantum series by Schneider Electric. It serves as an Interbus S Master for interfacing with the Interbus network. The module is designed for industrial automation applications, providing reliable communication and control capabilities.
Key Features
- Interbus S Master: The primary function of the 140NOA61110 is to act as a master device on the Interbus network, which is a robust and reliable fieldbus system used extensively in industrial environments.
- 5VDC Power Supply: The module operates on a 5VDC power supply, ensuring efficient power consumption and compatibility with other components in the Quantum series.
- High-Speed Communication: Interbus is known for its high-speed and deterministic communication, making the 140NOA61110 suitable for applications requiring fast and precise data exchange.
- Robust Design: The module is built to withstand the harsh conditions of industrial environments, offering durability and reliability.
Technical Specifications
- Power Supply: 5VDC
- Protocol: Interbus S
- Communication Speed: Up to 500 Kbps
- Number of Nodes: Supports up to 128 devices
- Diagnostics: Includes diagnostic LEDs and software tools for monitoring and troubleshooting
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Dimensions: Standard Quantum module dimensions
- Weight: Approximately 0.5 kg
Applications
The 140NOA61110 is used in various industrial applications where reliable and high-speed communication is crucial. Some common applications include:
- Manufacturing Automation: The module is used in manufacturing plants for coordinating the operations of various machines and systems, ensuring seamless and efficient production processes.
- Process Control: In industries like oil and gas, chemical processing, and water treatment, the 140NOA61110 helps in monitoring and controlling processes to maintain optimal performance and safety.
- Material Handling: The module is employed in material handling systems for controlling conveyors, sorters, and other equipment, improving the efficiency and accuracy of the handling processes.
- Automotive Industry: In the automotive sector, the 140NOA61110 is used in assembly lines and testing stations, facilitating high-speed communication and control of various devices and systems.
Integration with Modicon Quantum Series
The 140NOA61110 seamlessly integrates with other modules in the Modicon Quantum series, providing a cohesive and efficient automation solution. The Quantum series is known for its scalability, flexibility, and robustness, making it a preferred choice for many industrial applications. Key integration features include:
- Compatibility: The module is fully compatible with other Quantum modules, allowing for easy integration and expansion of existing systems.
- Centralized Control: By acting as an Interbus S Master, the 140NOA61110 allows centralized control and monitoring of all connected devices, improving overall system efficiency.
- Diagnostics and Troubleshooting: The Quantum series offers advanced diagnostic and troubleshooting capabilities, making it easier to identify and resolve issues quickly.
Advantages
- High Performance: The module offers high-speed communication and reliable performance, essential for time-critical applications.
- Scalability: With support for up to 128 devices, the 140NOA61110 allows for scalable system designs that can grow with the needs of the application.
- Reliability: Built for industrial environments, the module ensures consistent and reliable operation even in harsh conditions.
- Ease of Use: The Quantum series is known for its user-friendly design, with easy installation, configuration, and maintenance.
Installation and Configuration
- Installation: The 140NOA61110 can be easily installed in a Quantum series rack. It follows standard procedures for module installation, ensuring a secure and stable connection.
- Configuration: Configuration of the module is done through software tools provided by Schneider Electric. These tools offer intuitive interfaces for setting up communication parameters, addressing, and other necessary settings.
- Integration: Once installed and configured, the module can be integrated with other Quantum series modules and devices on the Interbus network. This includes setting up communication links, defining data exchange parameters, and testing the system for proper operation.
Conclusion
The 140NOA61110 Modicon 5VDC Interbus S Master Quantum module is a versatile and powerful component in the Modicon Quantum series, offering high-speed communication, reliable performance, and seamless integration with other Quantum modules. Its robust design and advanced features make it suitable for a wide range of industrial automation applications, providing efficient and scalable solutions for complex control systems. Whether used in manufacturing, process control, material handling, or the automotive industry, the 140NOA61110 delivers the performance and reliability needed to meet the demands of modern industrial environments
