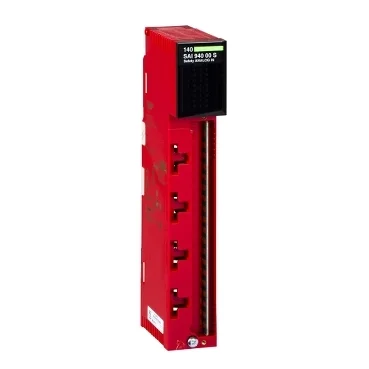

RANGE OF PRODUCT | Modicon Quantum automation platform. |
---|---|
PRODUCT OR COMPONENT TYPE | Safety dc discrete output module. |
DISCRETE OUTPUT NUMBER | 16 |
---|---|
GROUP OF Chanels | 1 |
DISCRETE OUTPUT LOGIC | Positive logic (source). |
ADDRESSING REQUIREMENT | 4 output words 7 input words. |
DISCRETE OUTPUT VOLTAGE | 19.2…30 V DC |
ABSOLUTE MAXIMUM OUTPUT | 34 V |
MAXIMUM VOLTAGE DROP | <0.3 V, 0.5 A |
SENSOR POWER SUPPLY | 19.2…30 V |
MAXIMUM LOAD CURRENT | <= 0.65 A at each point <= 10.04 A each group. |
SURGE CURRENT | 2 A for 10 ms |
RESPONSE TIME | <= 20 ms at state 0 to state 1 <= 20 ms from state 1 to state 0. |
MAXIMUM LEAKAGE CURRENT | 0.5 mA, 30 V |
PROTECTION TYPE | With |
LOAD INDUCTANCE | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))). 0.5 8 Hz. |
FAULT INDICATION | Channel fault Overload. Power supply fault. System fault. |
ASSOCIATED FUSE RATING | 10 A |
ISOLATION BETWEEN CHANNELS AND BUS | 1500 Vrms for 1 minute |
ISOLATION BETWEEN GROUP AND BUS | 1500 Vrms for 1 minute |
POWER DISSIPATION | 1.9 W + 0.65 I² |
MARKING | CE |
LOCAL SIGNALLING | 1 LED (green) for bus communication is present (Active). 1 LED (red) for external fault detected (F) 16 LEDs (green) for output status. 16 LEDs (red) for system failure, diagnostic of internal channel fault. |
BUS CURRENT REQUIREMENT | 350 mA |
PRODUCT CERTIFICATIONS | TÜV Rheinland (SIL2) CSA. CSA HazLoc UL C-Tick. |
---|
UNIT TYPE OF PACKAGE 1 | PCE |
---|---|
NUMBER OF UNITS IN PACKAGE 1 | 1 |
PACKAGE 1 WEIGHT | 500.0 g |
PACKAGE 1 HEIGHT | 4.7 cm |
PACKAGE 1 WIDTH | 16.3 cm |
PACKAGE 1 LENGTH | 31.3 cm |
UNIT TYPE OF PACKAGE 2 | S03 |
NUMBER OF UNITS IN PACKAGE 2 | 7 |
PACKAGE 2 WEIGHT | 3.88 kg |
PACKAGE 2 HEIGHT | 30 cm |
PACKAGE 2 WIDTH | 30 cm |
PACKAGE 2 LENGTH | 40 cm |
Key Features
- 32 Output Channels: Provides 32 digital output channels, enabling control of multiple devices simultaneously.
- 24V DC Outputs: Designed to work with 24V DC output signals, commonly used in industrial automation.
- Solid State Outputs: Utilizes solid state technology for switching, which offers higher reliability and longer lifespan compared to mechanical relays.
- Optical Isolation: Each output channel is optically isolated to protect the module from electrical noise and surges, enhancing system reliability.
- Status LEDs: Equipped with status LEDs for each output channel, providing visual indication of the output status for easy monitoring and troubleshooting.
