Description
| range of product | Modicon M580. |
|---|---|
| product or component type | Communication module. |
| product compatibility | Ethernet + X-bus rack. |
| integrated connection type | 1 Ethernet, connector type: RJ45, transmission rate: 1. Gbit/s, transmission mode: double shielded twisted pair. 1 Ethernet, transmission rate: 100 Mbit/s. |
|---|---|
| web server | For configuration. |
| transmission support medium | Ethernet backplane. |
| communication service | OPC UA server. Modbus TCP messaging. SNMP network management. NTP time synchronization. Embedded router. OPC UA client. |
| cybersecurity | Role-based access control. System hardening. Secure communication (HTTPS). Achilles certified. Syslog protocol support. Transport Layer Security.. |
| port Ethernet | 10/100/1000 BASE-TX. |
| supply | Internal power supply via rack. |
| protective treatment | Standard version. |
| marking | CE. CSA. |
| module format | Standard. |
| current consumption | <= 140 mA at 24 V DC. |
| length | 86.05 mm |
| width | 32 mm |
| height | 131 mm |
| net weight | 0.4 kg |
| ambient air temperature for operation | 0…60 °C |
|---|---|
| relative humidity | 5… 95%% at 55 °C |
| IP degree of protection | IP20 |
| directives | 2014/35/EU: Low Voltage voltage directive. 2014/30/EU: electromagnetic compatibility. |
| local signalling | 1 LED (green) for processor running (RUN). 1 LED (red) for processor or system fault (ERR). 1 LED (green/red) for ETH MS (Ethernet port. configuration status). 1 LED (green/red) for Eth NS (Ethernet network status). 1 LED (green/red) for status (STS). 1 LED (yellow) for the communication data bus. |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1: Weight | 528.0 g |
| Package 1: Height | 5.5 cm |
| Package: 1 width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2: Weight | 4.678 kg |
| Package 2: Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |

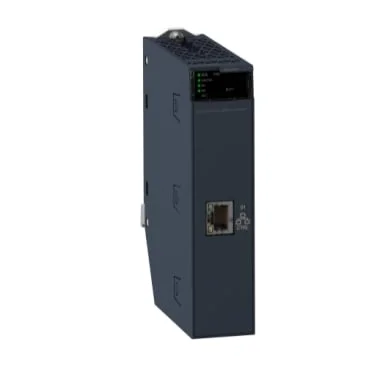

1. Introduction to the BMENUA0100
The BMENUA0100 module is a communication interface specifically developed for the Modicon M580 PAC. It serves as a bridge between the M580 controller and other networked devices or systems, facilitating efficient data exchange and network communication. By supporting multiple industrial protocols, the BMENUA0100 enhances the flexibility and functionality of the M580 system, making it suitable for a wide range of automation and control applications.
2. Key Features
- Multi-Protocol Support: The BMENUA0100 supports several communication protocols, including EtherNet/IP and Modbus TCP. This multi-protocol capability allows the M580 PAC to interface with a diverse array of devices and systems, ensuring compatibility with existing infrastructure and facilitating integration with other automation systems.
- High-Speed Communication: The module is designed to handle high-speed data transfer, ensuring that communication between the Modicon M580 and connected devices is both rapid and reliable. This is crucial for real-time applications where timely data exchange is essential for system performance.
- Redundancy Support: To enhance system reliability and availability, the BMENUA0100 supports network redundancy features. This means that if one communication path fails, the system can automatically switch to a backup path, minimizing downtime and ensuring continuous operation.
- Configuration Flexibility: The module offers flexible configuration options, allowing users to tailor its settings to meet specific application requirements. This includes configuring network parameters, setting up communication protocols, and defining data exchange parameters.
- Diagnostics and Monitoring: The BMENUA0100 includes diagnostic and monitoring tools that provide insights into the health and performance of the communication network. Users can access real-time status information, identify potential issues, and take corrective actions as needed.
3. Technical Specifications
- Communication Ports: The BMENUA0100 features multiple Ethernet ports to connect with other devices and networks. These ports support standard Ethernet communication protocols and are designed for high-speed data transfer.
- Power Supply: The module operates on a 24V DC power supply, which is common in industrial automation systems. It is designed to be robust and reliable, ensuring stable operation even in demanding environments.
- Mounting and Compatibility: The BMENUA0100 is designed to be easily integrated into the Modicon M580 rack. It is compatible with other Modicon M580 modules and accessories, providing a cohesive solution for industrial automation needs.
- Temperature Range: The module is built to operate within a specified temperature range, making it suitable for use in various industrial environments. It is designed to withstand fluctuations in temperature and maintain reliable performance.
- Certifications: The BMENUA0100 complies with industry standards and certifications, ensuring that it meets safety, quality, and performance requirements. This includes certifications for electromagnetic compatibility (EMC), safety, and environmental protection.
4. Applications and Use Cases
The BMENUA0100 is versatile and can be used in a variety of applications across different industries:
- Manufacturing: In manufacturing environments, the module enables the Modicon M580 PAC to communicate with various sensors, actuators, and other control devices, ensuring seamless automation and control of production processes.
- Utilities: For utilities management, the BMENUA0100 facilitates communication between the M580 controller and systems used for monitoring and controlling utilities such as water, electricity, and gas.
- Infrastructure: In infrastructure projects, the module supports communication between the M580 PAC and systems used for managing and controlling infrastructure components, such as traffic lights, lighting systems, and building management systems.
- Process Control: In process control applications, the BMENUA0100 enables the M580 PAC to interface with process equipment and systems, ensuring accurate and efficient control of industrial processes.
5. Advantages and Benefits
- Enhanced Connectivity: By supporting multiple communication protocols, the BMENUA0100 provides enhanced connectivity options, allowing the Modicon M580 PAC to interface with a wide range of devices and systems.
- Increased Reliability: The module’s support for network redundancy and diagnostic tools contributes to increased system reliability and availability, reducing the risk of downtime and ensuring continuous operation.
- Flexible Configuration: The flexibility in configuration allows users to tailor the module’s settings to meet specific application needs, providing a customizable solution for various automation requirements.
- Robust Performance: With its high-speed communication capabilities and rugged design, the BMENUA0100 delivers reliable performance even in demanding industrial environments.
6. Conclusion
The BMENUA0100 communication module is a vital component of the Modicon M580 PAC, offering a range of features and benefits that enhance the system’s connectivity and communication capabilities. Its support for multiple protocols, high-speed data transfer, and network redundancy makes it a valuable asset for industrial automation applications. Whether used in manufacturing, utilities, infrastructure, or process control, the BMENUA0100 ensures seamless integration and reliable performance, contributing to the overall efficiency and effectiveness of the Modicon M580 automation system.
