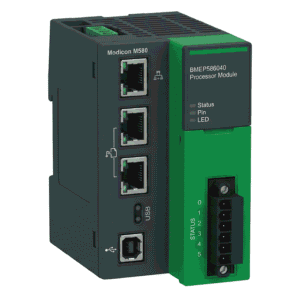

Description
| range of product | Modicon M580 |
|---|---|
| product or component type | Processor module |
| number of racks | 4 |
|---|---|
| Local I/O processor capacity (discrete) | 1024 I/O |
| Local I/O processor capacity (analog) | 256 I/O |
| Number of application-specific channel (local rack) | 36 |
| application specific I/O | Accurate time stamping Motion control Counter. HART SSI encoder. Serial link |
| checks | Process control |
| control channels | Programmable loops |
| integrated connection type | 1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB-type mini-B. |
| number of distributed pieces of equipment | 64 |
| communication module processor capacity | 2 Ethernet communication modules 8 AS-Interface module. |
| communication service | DIO scanner |
| memory description | Integrated RAM, 4 MB for program Integrated RAM, 384 kB for data. Expandable flash, 4 GB for data storage. Integrated RAM, 10 kB for system memory. |
| application structure | 1 periodic fast task 2 auxiliary tasks. 1 cyclic/periodic master task 64 event tasks. |
| number of instructions per ms | 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic. 10 Kinst/ms: 100% Boolean. |
| current consumption | 270 mA at 24 V DC |
| MTBF reliability | 600000 H |
| marking | CE |
| vibration resistance | 3 gn |
|---|---|
| shock resistance | 30 gn |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 0…2000 m. 2000…5000 m with derating factor |
| relative humidity | 5…95% at 55 °C without condensation. |
| IP degree of protection | IP20 |
| directives | 2014/35/EU: Low Voltage Directive 2014/30/EU: electromagnetic compatibility. |
| product certifications | CE UL CSA RCM. EAC Merchant Navy. |
| standards | EN 61131-2 EN/IEC 61010-2-201 UL 61010-2-201. CSA C22.2 No. 61010-2-201. IACS E10 EN/IEC 61000-6-5, interface types 1 and 2,. EN/IEC 61850-3, location G |
| environmental characteristic | Hazardous location class I, division 2 |
| supply | Internal power supply via rack |
| status LED | 1 LED (green) processor running (RUN) 1 LED (red) processor or system fault (ERR) 1 LED (red) I/O module fault (I/O). 1 LED (green) download in progress (DL) 1 LED (red) memory card or CPU flash fault (BACKUP). 1 LED (green/red) ETH MS (Ethernet port configuration status). 1 LED (green/red) Eth NS (Ethernet network status). |
| net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1: Weight | 870.0 g |
| Package 1: Height | 9.0 cm |
| Package: 1 width | 18.0 cm |
| Package 1 Length | 25.2 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2: Weight | 5.66 kg |
| Package 2: Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
