Description

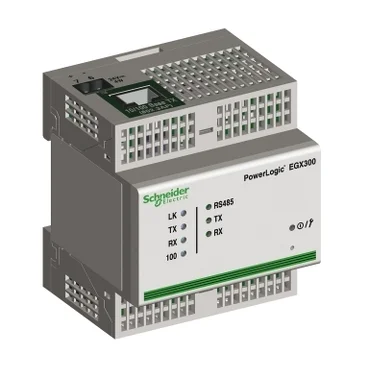

The Schneider Electric EGX300 POWERLOGIC Ethernet Gateway is a robust and versatile device designed to facilitate communication between power monitoring equipment and Ethernet networks. It acts as a bridge, enabling the integration of power monitoring devices into a networked environment, thereby enhancing data accessibility and system management. This comprehensive guide provides detailed information on the features, applications, installation, and benefits of the EGX300 Ethernet Gateway.
Features of the EGX300 POWERLOGIC Ethernet Gateway
- Ethernet Connectivity: The EGX300 provides reliable Ethernet connectivity, allowing power monitoring devices to be easily integrated into local area networks (LANs). This facilitates remote monitoring and control of electrical systems.
- Web-Based Interface: Equipped with a user-friendly web-based interface, the EGX300 enables easy configuration and management. Users can access real-time data, configure settings, and monitor system performance from any web browser.
- Protocol Support: The gateway supports multiple communication protocols, including Modbus TCP/IP and Modbus RTU. This ensures compatibility with a wide range of power monitoring devices and simplifies system integration.
- Data Logging: The EGX300 features built-in data logging capabilities, allowing it to store and retrieve historical data. This is essential for trend analysis, energy management, and troubleshooting.
- Security: To ensure data integrity and secure communication, the EGX300 includes advanced security features such as password protection and encryption. This helps prevent unauthorized access and data tampering.
- Scalability: The EGX300 is designed to be scalable, supporting the integration of multiple devices and expansion as needed. This makes it suitable for both small-scale and large-scale power monitoring systems.
Applications of the EGX300 POWERLOGIC Ethernet Gateway
The EGX300 is used in various applications where power monitoring and energy management are critical:
- Industrial Facilities: In industrial environments, the EGX300 enables comprehensive monitoring of electrical systems, helping to optimize energy usage, improve efficiency, and reduce downtime. It is used in manufacturing plants, refineries, and other industrial facilities.
- Commercial Buildings: For commercial buildings, the EGX300 facilitates the monitoring and management of electrical systems, contributing to energy savings and operational efficiency. It is commonly used in office buildings, shopping malls, and hospitals.
- Data Centers: Data centers rely on the EGX300 for real-time monitoring of power usage, ensuring the reliability and availability of critical IT infrastructure. It helps in managing energy consumption and preventing power-related issues.
- Utilities and Infrastructure: The gateway is also used in utilities and infrastructure applications, such as power distribution networks and water treatment plants. It supports the monitoring and control of essential services, enhancing operational stability and efficiency.
Installation and Configuration
- Preparation: Before installation, ensure that you have the necessary tools and equipment, including Ethernet cables, power supply, and mounting hardware. Verify that the power monitoring devices and network infrastructure are compatible with the EGX300.
- Physical Installation: Mount the EGX300 in a suitable location, such as a control panel or server room. Connect the gateway to the power monitoring devices using the appropriate communication cables (e.g., RS485 for Modbus RTU). Connect the Ethernet port to the LAN using an Ethernet cable.
- Power Supply: Connect the EGX300 to a power source using the provided power supply. Ensure that the voltage and current ratings are compatible with the gateway’s specifications.
- Configuration: Access the web-based interface by entering the gateway’s IP address into a web browser. Follow the on-screen instructions to configure network settings, communication protocols, and device parameters. Set up user accounts and security features as needed.
- Testing and Verification: After configuration, test the system to ensure that the EGX300 is communicating correctly with the power monitoring devices and the network. Verify that data is being logged and that the web interface displays real-time information accurately.
Benefits of Using the EGX300 POWERLOGIC Ethernet Gateway
- Enhanced Monitoring and Control: The EGX300 provides comprehensive monitoring and control of electrical systems, enabling users to optimize energy usage, improve efficiency, and reduce operational costs.
- Remote Accessibility: With Ethernet connectivity and a web-based interface, users can access real-time data and manage the system remotely from any location with internet access. This enhances convenience and responsiveness.
- Improved Data Management: The built-in data logging capabilities allow for the storage and retrieval of historical data, facilitating trend analysis, energy management, and troubleshooting. This supports better decision-making and system optimization.
- Scalability and Flexibility: The EGX300 is scalable, allowing for the integration of multiple devices and easy expansion as needed. This makes it suitable for various applications and future-proofing investments in power monitoring infrastructure.
- Enhanced Security: Advanced security features ensure that data integrity and communication are protected, preventing unauthorized access and data tampering. This enhances the reliability and trustworthiness of the system.
- Cost-Effective Solution: By enabling the integration of existing power monitoring devices into a networked environment, the EGX300 offers a cost-effective solution for upgrading and enhancing power monitoring capabilities without the need for extensive hardware replacements.
Conclusion
The Schneider Electric EGX300 POWERLOGIC Ethernet Gateway is a powerful and versatile device that enhances the monitoring and management of electrical systems. With its Ethernet connectivity, web-based interface, protocol support, and data logging capabilities, it provides a comprehensive solution for industrial, commercial, and infrastructure applications. The gateway’s scalability, security features, and cost-effectiveness make it an invaluable tool for optimizing energy usage, improving system efficiency, and ensuring reliable operation.
