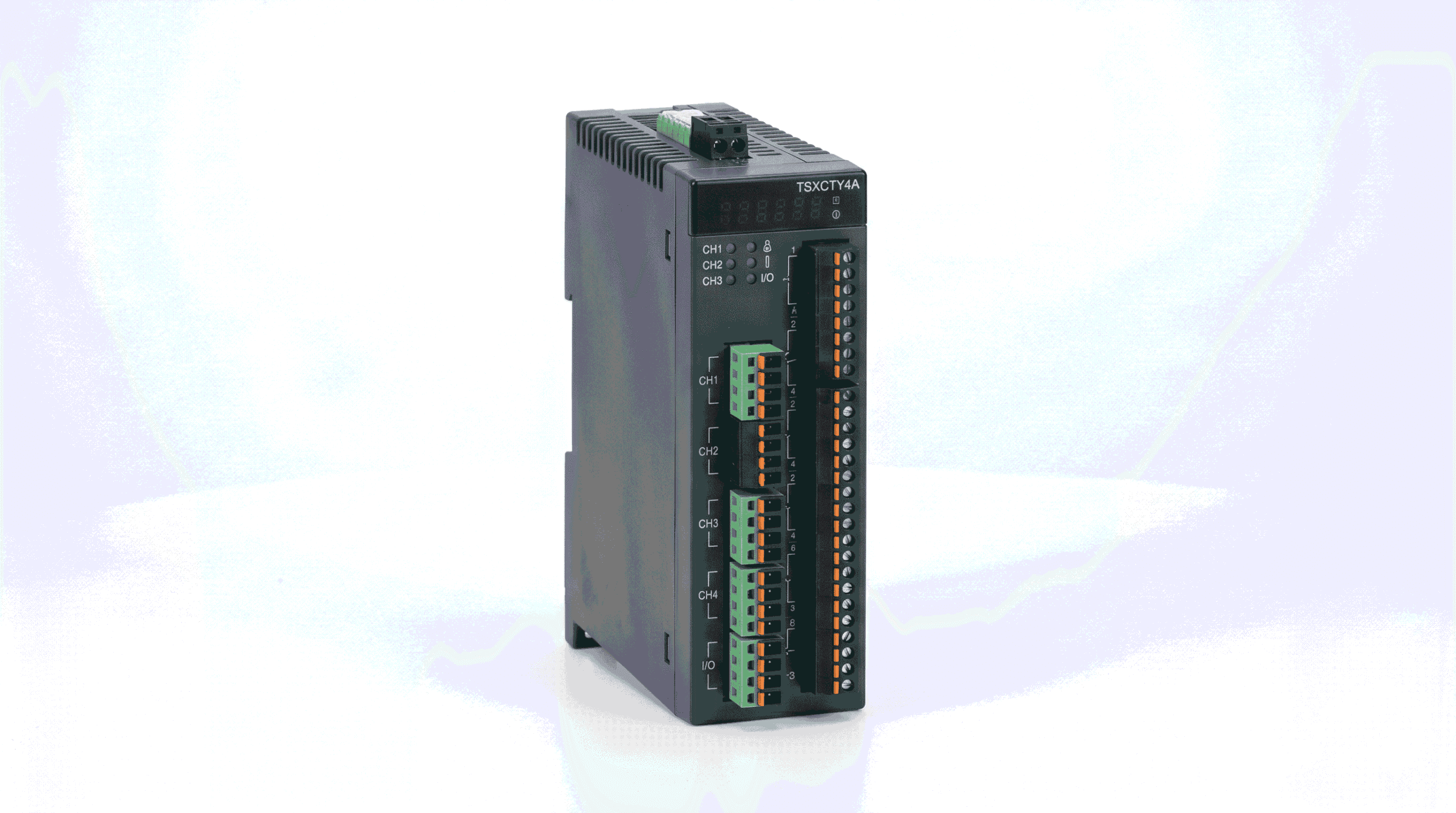

| counting frequency | 40 kHz |
|---|
| power dissipation in W | 8…11.5 W |
|---|
| cycle time | 10 ms |
|---|
| discrete input logic | Current sink for auxiliary input (preset, enable and read) conforming to IEC 1131 Type 2
Resistive for 2/3-wire proximity sensors PNP/NPN conforming to IEC 1131 Type 2
Resistive for encoder input |
|---|
| input logic | Positive |
|---|
| input compatibility | Incremental encoder 10–30 V totem pole,
Incremental encoder: 5 V DC RS422. |
|---|
| input voltage | 24 V, 18 mA, 2/3-wire proximity sensors PNP/NPN,
24 V, 7 mA auxiliary input (preset, enable and read)
5 V, 18 mA encoder input. |
|---|
| input voltage limits | <= 5.5 V encoder input,
19…30 V 2/3-wire proximity sensors PNP/NPN,
19–30 V auxiliary input (preset, enable and read). |
|---|
| voltage state 1 guaranteed | >= 11 V for 2/3-wire proximity sensors (PNP/NPN),
>= 11 V for auxiliary input (preset, enable and read).
>= 2.4 V for encoder input. |
|---|
| current state is guaranteed | >= 3.7 mA (encoder input),
>= 6 mA (2/3-wire proximity sensors, PNP/NPN),
>= 6 mA (auxiliary input (preset, enable and read)). |
|---|
| voltage state 0 guaranteed | <= 1.2 V for encoder input,
<= 5 V for 2/3-wire proximity sensors (PNP/NPN),
<= 5 V for auxiliary input (preset, enable and read). |
|---|
| current state 0 guaranteed | <= 1 mA (encoder input),
<= 2 mA (2/3-wire proximity sensors, PNP/NPN),
<= 2 mA (auxiliary input (preset, enable and read)). |
|---|
| response time | < 2.5 ms sensor voltage at loss of 24 V auxiliary input (preset, enable and read). |
|---|
| input impedance | Encoder input: > 270 Ohm at U = 2.4 V,
2/3-wire proximity sensors PNP/NPN: 1400 Ohm at Un,
Auxiliary input (preset, enable and read): 3400 Ohm at Un,
Encoder input: 400 Ohm at Un. |
|---|
| output voltage | 24 V DC |
|---|
| nominal output current | 0.5 A |
|---|
| output voltage limits | 19…30 V |
|---|
| maximum voltage drop | <0.5 V at state 1 |
|---|
| output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) for auxiliary output |
|---|
| maximum leakage current | 0.1 mA |
|---|
| switching frequency | < 0.6/LI² Hz on inductive load load |
|---|
| output overload protection | Thermal tripping via program or automatically
Current limiter |
|---|
| output short-circuit protection | Thermal tripping via program or automatically
Current limiter. |
|---|
| output overvoltage protection | Zener diode |
|---|
| reverse-polarity protection | Reverse diode on supply |
|---|
| checks | Sensor power supply |
|---|
| current consumption | 330 µA at 5 V DC
36 mA at 24 V DC |
|---|
| module format | Standard |
|---|
| local signalling | 1 LED (green) for module operating (RUN),
1 LED (red) for external fault (I/O),
1 LED (red) for internal fault, module failure (ERR),
4 LEDs (green) for axis diagnostics are available (CH.). |
|---|
| electrical connection | 2 connectors (HE-10), 20 pins,
4 connectors, SUB-D 15. |
|---|
| net weight | 0.43 kg |
|---|
