Description

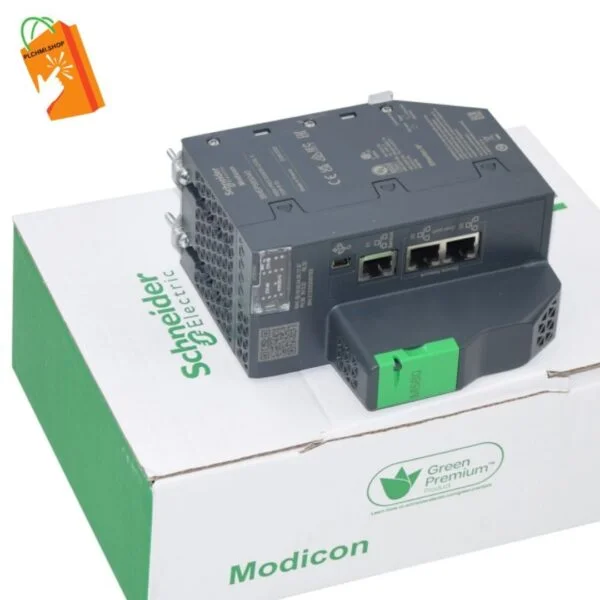

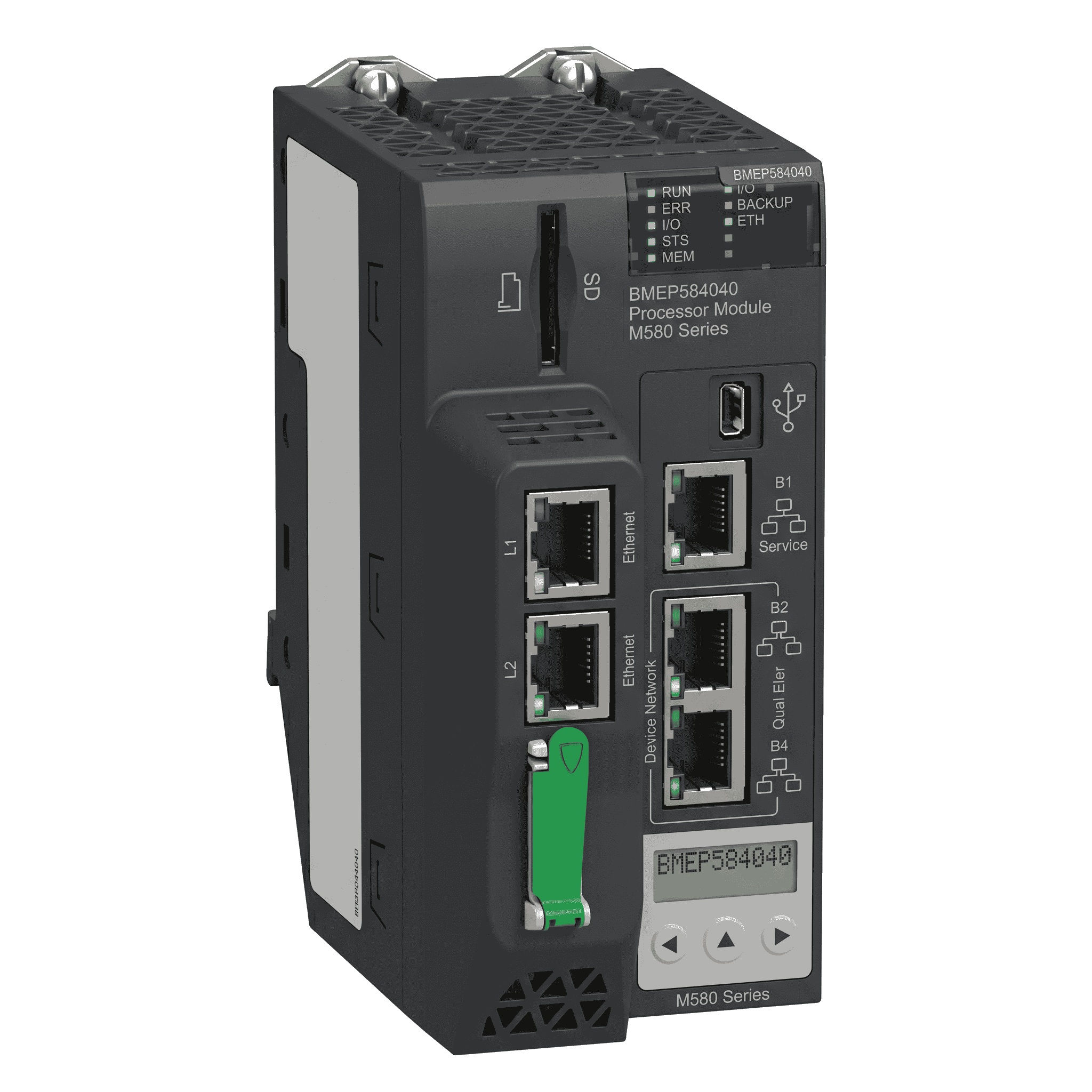

Processor module, Modicon M580, Level 5, Remote
| range of product |
Modicon M580
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| impregnation material |
Conformal coated
|
|
| supply |
Internal power supply via rack
|
| number of racks |
8
|
|
|---|---|---|
| Local I/O processor capacity (discrete) |
5120 I/O
|
|
| Local I/O processor capacity (analog) |
1280 I/O
|
|
| Number of application-specific channel (local rack) |
180
|
|
| application specific I/O |
SSI encoder,
Serial link, Accurate time stamping, Counter, HART, Motion control. |
|
| checks |
Process control
|
|
| control channels |
Programmable loops
|
|
| integrated connection type |
USB-type mini-B,
1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device networks. |
|
| number of remote I/O station |
31: 2 racks per remote drop
|
|
| number of distributed pieces of equipment |
64
|
|
| communication module processor capacity |
8 AS-Interface module.
6 Ethernet communication modules. |
|
| communication service |
DIO scanner
RIO scanner |
|
| memory description |
Expandable flash (4 GB) data storage,
Integrated RAM: 10 kB system memory, Integrated RAM (24 MB) program, Integrated RAM: 4096 kB data. |
|
| application structure |
1 cyclic/periodic master task,
128 event tasks, 2 auxiliary tasks, 1 periodic fast task. |
|
| number of instructions per ms |
40 Kinst/ms 100 % Boolean,
60 Kinst/ms 65 % Boolean + 35 % fixed, arithmetic. |
|
| current consumption |
295 mA, 24 V DC
|
|
| MTBF reliability |
600000 H
|
|
| marking |
CE
|
|
| status LED |
1 LED green download in progress (DL),
1 LED red memory card or CPU flash fault, (BACKUP), 1 LED green/red ETH MS (Ethernet port configuration status), 1 LED green/red Eth NS, (Ethernet network status), 1 LED green I/O value overrided by user (FORCED IO), 1 LED green processor running (RUN) 1 LED red I/O module fault (I/O), 1 LED: red processor or system fault (ERR). |
|
| product weight |
1.87 lb (US) (0.849 kg)
|
| vibration resistance |
3 gn
|
|
|---|---|---|
| shock resistance |
30 gn
|
|
| ambient air temperature for operation |
-13.140 °F (-25…60 °C)
|
|
| ambient air temperature for storage |
-40.185 °F (-40…85 °C)
|
|
| operating altitude |
0.6561.68 ft (0.2000 m).
2000–5000 m (with derating factor). |
|
| relative humidity |
5… 95% at 55 °C conforming to without, condensation.
|
|
| IP degree of protection |
IP20
|
|
| directives |
2014/35/EU: Low Voltage Directive,
2014/30/EU: electromagnetic compatibility, 2012/19/EU: WEEE directive. |
|
| standards |
EN 61131-2,
EN 61010-2-201, EN 61000-6-4, EN 61000-6-2. |
|
| protective treatment |
Conformal coating
|
|
| environmental characteristic |
Gas-resistant class Gx,
Gas-resistant class 3C4, Dust-resistant class 3S4, Sand-resistant class 3S4, Salt-resistant level 2, Mold-growth-resistant class 3B2, Fungal spore-resistant class 3B2. |
|
| product certifications |
IEC-Ex,
EAC, Merchant Navy, ATEX, CE, CSA, RCM, UL. |
Applications
- Industrial Automation: The module’s high processing power and connectivity options make it ideal for controlling and monitoring industrial machinery.
- Embedded Systems: Its compact design and efficiency suit embedded applications in automotive, aerospace, and consumer electronics.
- Data Acquisition: With multiple interfaces and robust processing capabilities, the BMEP585040 is perfect for real-time data acquisition and analysis.
- Security Systems: Advanced security features ensure reliable performance in surveillance and security applications.
Installation and Integration
- Mounting: The module can be mounted on standard racks or embedded within custom hardware setups.
- Power Connection: Connect to a stable 12V DC power supply.
- Network Configuration: Utilize the Ethernet ports for network connectivity. Configure IP settings through the provided management interface.
- Peripheral Connections: Attach peripherals using the USB and serial ports as required by the application.
Maintenance and Support
- Firmware Updates: Regular firmware updates are available to enhance performance and security.
- Technical Support: 24/7 technical support is available for troubleshooting and assistance.
- Warranty: The module comes with a 2-year warranty covering manufacturing defects.
Conclusion
The BMEP585040 Processor Module is a versatile and powerful computing unit, designed to meet the demanding requirements of modern industrial and commercial applications. Its high performance, energy efficiency, and advanced security features make it an excellent choice for a wide range of uses.
