Description

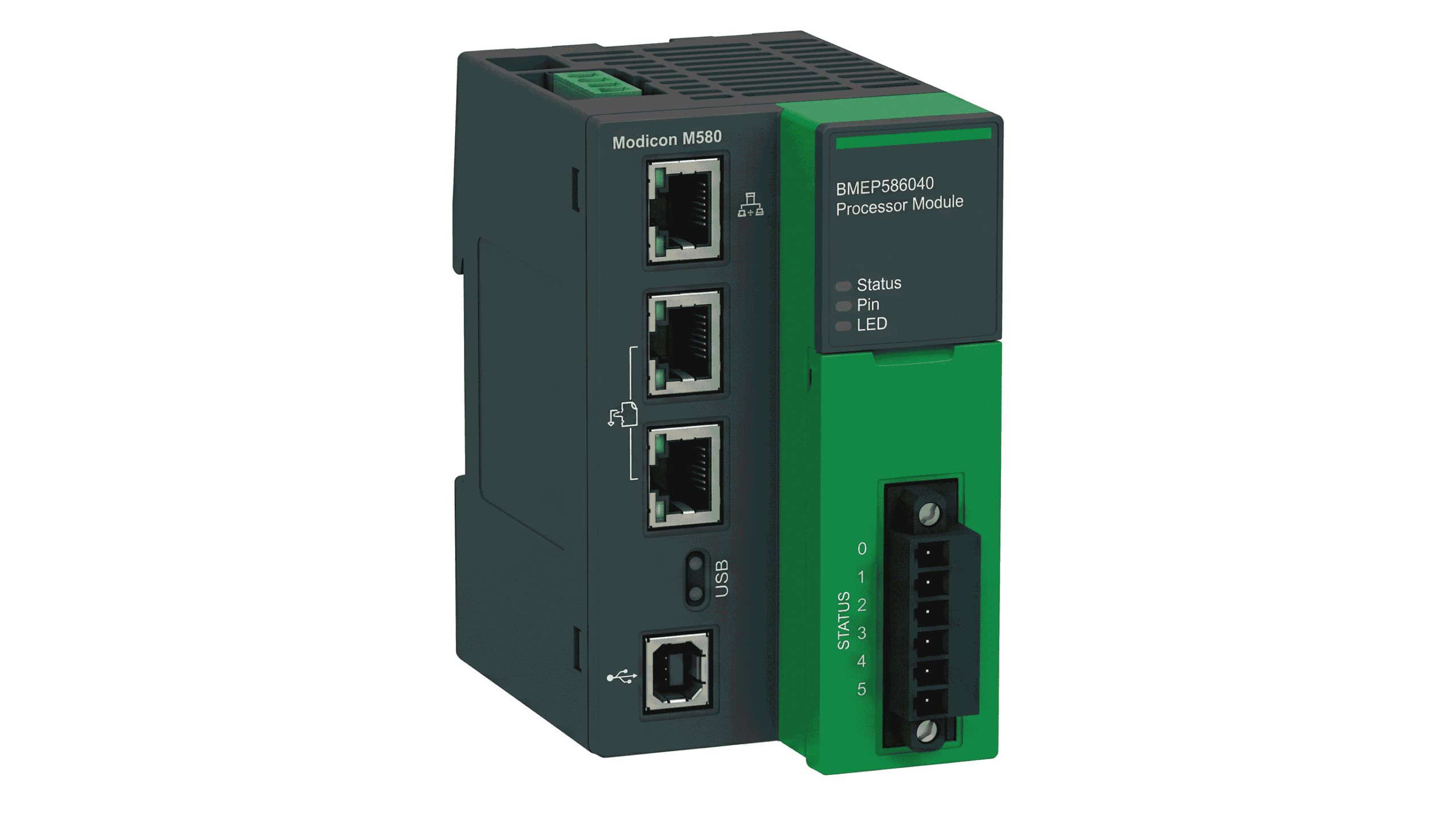

Processor module, Modicon M580, Level 4, Remote
| range of product |
Modicon M580
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| supply |
Internal power supply via rack
|
| number of racks |
8
|
|
|---|---|---|
| Local I/O processor capacity (discrete) |
4096 I/O
|
|
| Local I/O processor capacity (analog) |
1024 I/O
|
|
| Number of application-specific channel (local rack) |
144
|
|
| application specific I/O |
Accurate time stamping,
SSI encoder, Motion control, Counter, Serial link, HART. |
|
| checks |
Process control
|
|
| control channels |
Programmable loops
|
|
| integrated connection type |
USB-type mini-B,
1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device networks. |
|
| number of remote I/O station |
16 – 2 rack(s) per remote drop
|
|
| number of distributed pieces of equipment |
64
|
|
| communication module processor capacity |
8 AS-Interface module,
4 Ethernet communication modules. |
|
| communication service |
RIO scanner
DIO scanner |
|
| memory description |
Expandable flash (4 GB data storage),
Integrated RAM: 10 kB system memory, Integrated RAM (16 MB) program, Integrated RAM: 2048 kB of data. |
|
| application structure |
1 cyclic/periodic master task
1 periodic fast task 2 auxiliary tasks 128 event tasks |
|
| number of instructions per ms |
30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
40 Kinst/ms 100 % Boolean |
|
| current consumption |
295 mA, 24 V DC
|
|
| MTBF reliability |
600000 H
|
|
| marking |
CE
|
|
| status LED |
1 LED green download in progress (DL),
1 LED red memory card or CPU flash fault (BACKUP), 1 LED green/red ETH MS (Ethernet port configuration status), 1 LED green/red Eth NS (Ethernet network status), 1 LED green processor running (RUN), 1 LED red I/O module fault (I/O), 1 LED: red processor or system fault (ERR). |
|
| product weight |
1.87 lb (US) (0.849 kg)
|
| vibration resistance |
3 gn
|
|
|---|---|---|
| shock resistance |
30 gn
|
|
| ambient air temperature for operation |
32…140 °F (0…60 °C)
|
|
| ambient air temperature for storage |
-40…185 °F (-40…85 °C)
|
|
| operating altitude |
0.6561.68 ft (0.2000 m),
2000–5000 m (with derating factor). |
|
| relative humidity |
5.95% at 55 °C, conforming to without condensation.
|
|
| IP degree of protection |
IP20
|
|
| directives |
2014/30/EU: electromagnetic compatibility
2014/35/EU: low Directive 2012/19/EU: WEEE directive |
|
| standards |
EN 61000-6-4
EN 61010-2-201 EN 61131-2 EN 61000-6-2 |
|
| product certifications |
EAC
CSA CE UL RCM Merchant Navy |
Overview
The BMEP584040 Processor Module is a compact and robust computing unit designed for high-performance processing tasks in various applications, such as automation, control systems, and embedded computing. This module integrates a powerful processor with essential peripherals and interfaces to provide a versatile solution for complex computational tasks.
Key Features
- Processor: The core of the module is its processor, which could be a high-speed microprocessor or microcontroller. It is responsible for executing instructions and managing tasks efficiently.
- Memory: The module is equipped with memory components, including RAM for temporary data storage and flash memory for storing firmware and application code.
