Description

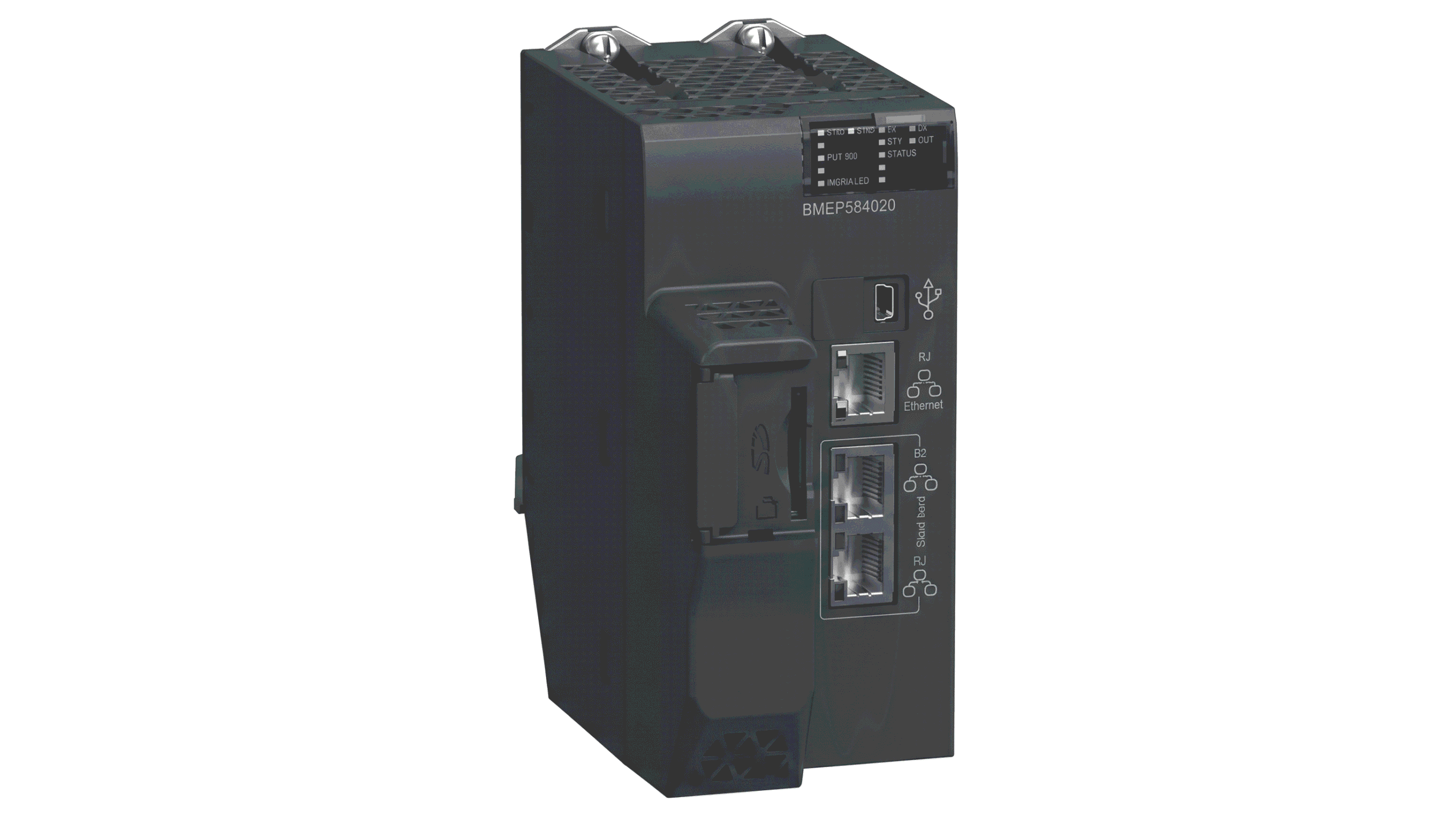

BMEP584020 Modicon M580, Schneider Electric’s high-performance Ethernet programmable automation controller.
| range of product |
BMEP584020 Modicon M580
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| supply |
Internal power supply via rack
|
| number of racks |
8
|
|
|---|---|---|
| Local I/O processor capacity (discrete) |
4096 I/O
|
|
| Local I/O processor capacity (analog) |
1024 I/O
|
|
| Number of application specific channel (local rack) |
144
|
|
| application specific I/O |
Counter.
Accurate time stamping. SSI encoder. Serial link. Motion control. HART |
|
| checks |
Process control
|
|
| control channels |
Programmable loops
|
|
| integrated connection type |
USB type mini B.
1 Ethernet TCP/IP service port. 2 Ethernet TCP/IP device networks. |
|
| number of distributed equipment |
128
|
|
| communication module processor capacity |
8 AS-Interface module.
4 Ethernet communication module. |
|
| communication service |
DIO scanner
|
|
| memory description |
Expandable flash: 4 GB data storage.
Integrated RAM 10 kB system memory. Integrated RAM 16 MB program. Integrated RAM 2048 kB data. |
|
| application structure |
128 event tasks.
1 cyclic/periodic master task. 1 periodic fast task. 2 auxiliary tasks |
|
| number of instructions per ms |
30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic.
40 Kinst/ms 100 % Boolean |
|
| current consumption |
295 mA, 24 V DC
|
|
| MTBF reliability |
600000 H
|
|
| marking |
CE
|
|
| status LED |
1 LED green download in progress (DL).
1 LED red memory card or CPU flash fault (BACKUP). 1 LED green/red ETH MS (Ethernet port configuration status). 1 LED green/red Eth NS (Ethernet network status). 1 LED green processor running (RUN). 1 LED red I/O module fault (I/O). 1 LED: red processor or system fault (ERR) |
|
| product weight |
1.87 lb (US) (0.849 kg)
|
| vibration resistance |
3 gn
|
|
|---|---|---|
| shock resistance |
30 gn
|
|
| ambient air temperature for operation |
32…140 °F (0…60 °C)
|
|
| ambient air temperature for storage |
-40…185 °F (-40…85 °C)
|
|
| operating altitude |
0.6561.68 ft (0…2000 m)
2000…5000 m (with derating factor) |
|
| relative humidity |
5… 95%% 55 °C conforming to without condensation
|
|
| IP degree of protection |
IP20
|
|
| directives |
2012/19/EU – WEEE directive.
2014/35/EU: – low voltage directive. 2014/30/EU – electromagnetic compatibility. |
|
| standards |
EN 61010-2-201.
EN 61000-6-4. EN 61131-2. EN 61000-6-2. |
|
| product certifications of BMEP584020 |
CSA.
CE. EAC. RCM. Merchant Navy. UL |
