Sale!
BMEP583040

BMEP583040

Original price was: $5,634.00.Current price is: $4,334.00.

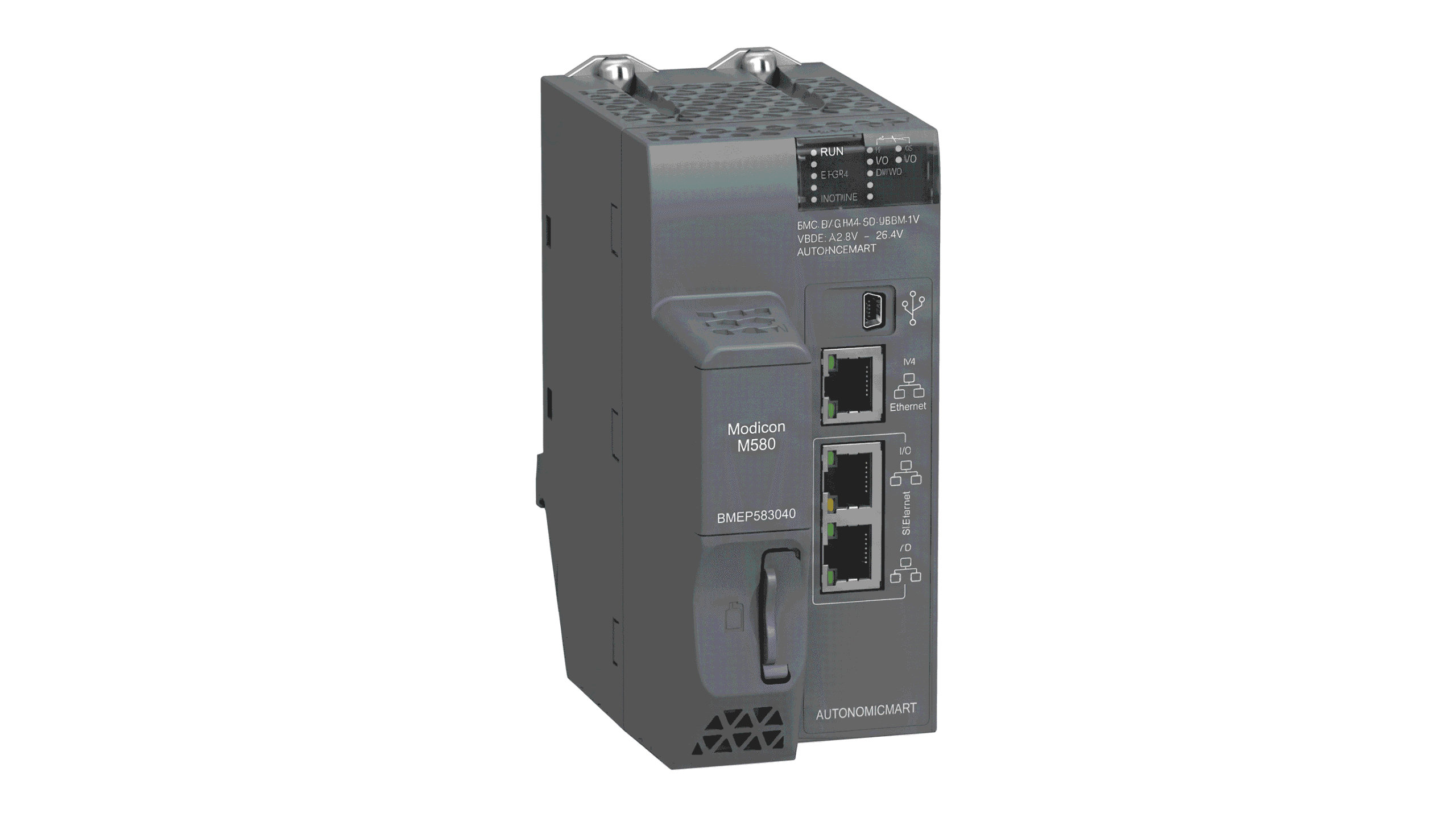

Processor module, Modicon M580, Level 3, Remote

Out of stock

Free shipping on orders over $5000!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Category:

Description

Processor module, Modicon M580, Level 3, Remote



Main
range of product
Modicon M580
product or component type
Processor module
supply
Internal power supply via rack
Complementary
number of racks
8
Local I/O processor capacity (discrete)
3072 I/O
Local I/O processor capacity (analog)
768 I/O
Number of application specific channel (local rack)
108
application specific I/O
Accurate time stamping
Motion control
SSI encoder
Counter
Serial link
HART
checks
Process control
control channels
Programmable loops
integrated connection type
USB type mini B
1 Ethernet TCP/IP service port
2 Ethernet TCP/IP device network
number of remote I/O station
16 – 2 rack(s) per remote drop
number of distributed equipment
64
communication module processor capacity
8 AS-Interface module
3 Ethernet communication module
communication service
DIO scanner
RIO scanner
memory description
Expandable flash 4 GB data storage
Integrated RAM 10 kB system memory
Integrated RAM 12 MB program
Integrated RAM 1024 kB data
application structure
1 periodic fast task
1 cyclic/periodic master task
2 auxiliary tasks
128 event tasks
number of instructions per ms
20 Kinst/ms 100 % Boolean
15 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
current consumption
295 mA 24 V DC
MTBF reliability
600000 H
marking
CE
status LED
1 LED green download in progress (DL)
1 LED red memory card or CPU flash fault (BACKUP)
1 LED green/red ETH MS (Ethernet port configuration status)
1 LED green/red Eth NS (Ethernet network status)
1 LED green processor running (RUN)
1 LED red I/O module fault (I/O)
1 LED red processor or system fault (ERR)
product weight
1.87 lb(US) (0.849 kg)
Environment
vibration resistance
3 gn
shock resistance
30 gn
ambient air temperature for operation
32…140 °F (0…60 °C)
ambient air temperature for storage
-40…185 °F (-40…85 °C)
operating altitude
0…6561.68 ft (0…2000 m)
2000…5000 m (with derating factor)
relative humidity
5…95 % 55 °C conforming to without condensation
IP degree of protection
IP20
directives
2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility
2012/19/EU – WEEE directive
standards
EN 61131-2
EN 61000-6-2
EN 61000-6-4
EN 61010-2-201
product certifications
CE
CSA
UL
Merchant Navy
RCM
EAC
