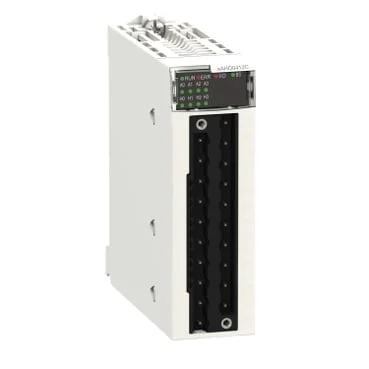

BMXAMI0410 Modicon X80 Analog input module

Description

Main

range of product	Modicon X80.
product or component type	Analog input module.
electrical connection	20 ways 1 connector.
Isolation between channels	Isolated.
input level	High level.
analogue input number	4
analogue input type	Current +/- 20 mA. Current 0…20 mA. Current 4…20 mA. Voltage +/- 10 V. Voltage +/- 5 V. Voltage 0…10 V. Voltage 0…5 V. Voltage 1…5 V.

Complementary

analog/digital conversion	24 bits.
analogue input resolution	16 bits.
permitted overload on inputs	+/- 30 V +/- 10 V. +/- 30 V +/- 5 V. +/- 30 V 0…10 V. +/- 30 V 0…5 V. +/- 30 V 1…5 V. +/- 90 mA +/- 20 mA. +/- 90 mA 0…20 mA. +/- 90 mA 4…20 mA.
input impedance	10 MOhm in voltage mode. 250 Ohm + 3.6…50 Ohm internal protective. resistor in current mode.
precision of internal conversion resistor	0.1 % – 15 ppm/°C.
type of filter	First order digital filtering.
fast read cycle time	1 ms + 1 ms x number of channels used.
nominal read cycle time	5 ms for 4 channels.
measurement error	<= 0.1 % of full scale +/- 10 V 0…60 °C. <= 0.1 % of full scale +/- 5 V 0…60 °C. <= 0.1 % of full scale 0…10 V 0…60 °C. <= 0.1 % of full scale 0…5 V 0…60 °C. <= 0.1 % of full scale 1…5 V 0…60 °C. <= 0.3 % of full scale +/- 20 mA 0…60 °C. <= 0.3 % of full scale 0…20 mA 0…60 °C. <= 0.3 % of full scale 4…20 mA 0…60 °C. 0.075 % of full scale +/- 10 V 25 °C. 0.075 % of full scale +/- 5 V 25 °C. 0.075 % of full scale 0…10 V 25 °C. 0.075 % of full scale 0…5 V 25 °C. 0.075 % of full scale 1…5 V 25 °C. 0.15 % of full scale +/- 20 mA 25 °C. 0.15 % of full scale 0…20 mA 25 °C. 0.15 % of full scale 4…20 mA 25 °C..
temperature drift	15 ppm/°C +/- 10 V. 15 ppm/°C +/- 5 V. 15 ppm/°C 0…10 V. 15 ppm/°C 0…5 V. 15 ppm/°C 1…5 V. 30 ppm/°C +/- 20 mA. 30 ppm/°C 0…20 mA. 30 ppm/°C 4…20 mA.
recalibration	Internal.
minimum crosstalk attenuation	80 dB.
Common mode rejection	90 dB.
digital value format	– 32768 to + 32767 in maximum user scale +/- 10000 by default.
isolation voltage	300 V DC between channels. 1400 V DC between channels and ground. 1400 V DC between channels and bus.
measurement resolution	0.35 mV +/- 10 V. 0.35 mV +/- 5 V. 0.35 mV 0…10 V. 0.35 mV 0…5 V. 0.35 mV 1…5 V. 0.92 µA +/- 20 mA. 0.92 µA 4…20 mA.
maximum conversion value	+/- 11.4 V +/- 10 V. +/- 11.4 V +/- 5 V. +/- 11.4 V 0…10 V. +/- 11.4 V 0…5 V. +/- 11.4 V 1…5 V. 0…30 mA +/- 20 mA. 0…30 mA 0…20 mA. 0…30 mA 4…20 mA.
operating altitude	0…2000 m.. 2000…5000 m with derating factor
status LED	1 LED (green) RUN. 1 LED per channel (green) channel diagnostic. 1 LED (red) ERR. 1 LED (red) I/O.
net weight	0.143 kg.
power consumption in W	0.82 W 24 V DC typical. 1.30 W 24 V DC maximum. 0.32 W 3.3 V DC typical. 0.48 W 3.3 V DC maximum.

Environment

vibration resistance	3 gn.
shock resistance	30 gn.
ambient air temperature for storage	-40…85 °C.
ambient air temperature for operation	0…60 °C.
relative humidity	5…95 % at 55 °C without condensation.
IP degree of protection	IP20.
directives	2014/35/EU – low voltage directive. 2014/30/EU – electromagnetic compatibility.
product certifications	CE RCM CSA EAC Merchant Navy UL
standards	EN/IEC 61010-2-201. EN/IEC 61131-2. UL 61010-2-201. CSA C22.2 No 61010-2-201.

Packing Units

Unit Type of Package 1	PCE.
Number of Units in Package 1	1
Package 1 Weight	177.0 g.
Package 1 Height	5.6 cm
Package 1 width	11.1 cm.
Package 1 Length	11.7 cm.
Unit Type of Package 2	S02
Number of Units in Package 2	15
Package 2 Weight	2.655 kg.
Package 2 Height	15.0 cm.
Package 2 width	30.0 cm.
Package 2 Length	40.0 cm.

The BMXAMI0410 is an analog input module from the Modicon X80 family, produced by Schneider Electric. This module is designed to be used in automation and control systems, providing a robust solution for capturing and processing analog signals from various sensors and transducers. Its versatile features and high performance make it an essential component in industrial applications.

Key Features

1. Analog Inputs: The BMXAMI0410 module is equipped with four analog inputs. These inputs are designed to handle a variety of analog signals, including voltage and current. This flexibility allows the module to interface with a wide range of sensors and devices in industrial environments.
2. High Resolution: The module offers a high resolution of 16 bits for accurate and precise measurement of analog signals. This high resolution ensures that even small changes in the input signal are detected and processed accurately.
3. Wide Range of Signal Types: The BMXAMI0410 supports multiple signal types, including 0-10V, 0-20mA, and 4-20mA. This versatility makes it suitable for various applications, such as temperature monitoring, pressure measurement, and flow control.
4. Isolation: Each input channel on the module is electrically isolated. This isolation helps prevent interference and ensures accurate signal processing by protecting the module from electrical noise and potential damage caused by signal transients.
5. Diagnostic Capabilities: The module includes diagnostic features that allow users to monitor the health and status of each input channel. This includes detection of open circuits, short circuits, and out-of-range signals. These diagnostics help in maintaining the reliability and efficiency of the automation system.
6. Compatibility: The BMXAMI0410 is fully compatible with the Modicon M340 and M580 automation platforms. This compatibility ensures seamless integration into existing systems, allowing for easy upgrades and expansions.

Applications

The BMXAMI0410 analog input module is utilized in various industrial applications due to its flexibility and robust performance. Some common applications include:

1. Process Control: In industries such as chemical, pharmaceutical, and food processing, accurate measurement and control of process variables like temperature, pressure, and flow are critical. The BMXAMI0410 module captures these analog signals and interfaces with the control system to ensure precise process control.
2. Energy Management: Monitoring and managing energy consumption is essential for optimizing operational efficiency. The BMXAMI0410 can be used to measure parameters such as voltage and current from power meters and transformers, providing valuable data for energy management systems.
3. Environmental Monitoring: The module is also used in environmental monitoring applications, where it captures data from sensors measuring air quality, water quality, and other environmental parameters. This data is crucial for ensuring compliance with regulatory standards and maintaining a safe environment.
4. Building Automation: In building automation systems, the BMXAMI0410 module interfaces with sensors for HVAC systems, lighting controls, and security systems. This integration helps in optimizing building operations and improving energy efficiency.

Technical Specifications

• Number of Channels: 4
• Resolution: 16 bits
• Input Signal Types: 0-10V, 0-20mA, 4-20mA
• Input Impedance: High impedance for voltage inputs, low impedance for current inputs
• Accuracy: ±0.1% full scale
• Isolation: 500V between channels and system
• Diagnostics: Open circuit detection, short circuit detection, out-of-range detection
• Operating Temperature: -25°C to +70°C
• Dimensions: 125 x 52.5 x 89 mm

Installation and Configuration

Installing and configuring the BMXAMI0410 module is straightforward. The module is designed to be mounted on a standard DIN rail and connected to the automation system using a backplane connector. Configuration of the module is performed using Schneider Electric’s Unity Pro or EcoStruxure Control Expert software. The software provides a user-friendly interface for setting up the input channels, configuring signal types, and enabling diagnostic features.

1. Mounting: Secure the module onto the DIN rail in the control cabinet. Ensure that the backplane connector is properly aligned with the corresponding slot on the rail.
2. Wiring: Connect the analog signal wires to the input terminals on the module. Follow the wiring diagram provided in the user manual to ensure correct connections. Use shielded cables to minimize electrical noise and ensure accurate signal transmission.
