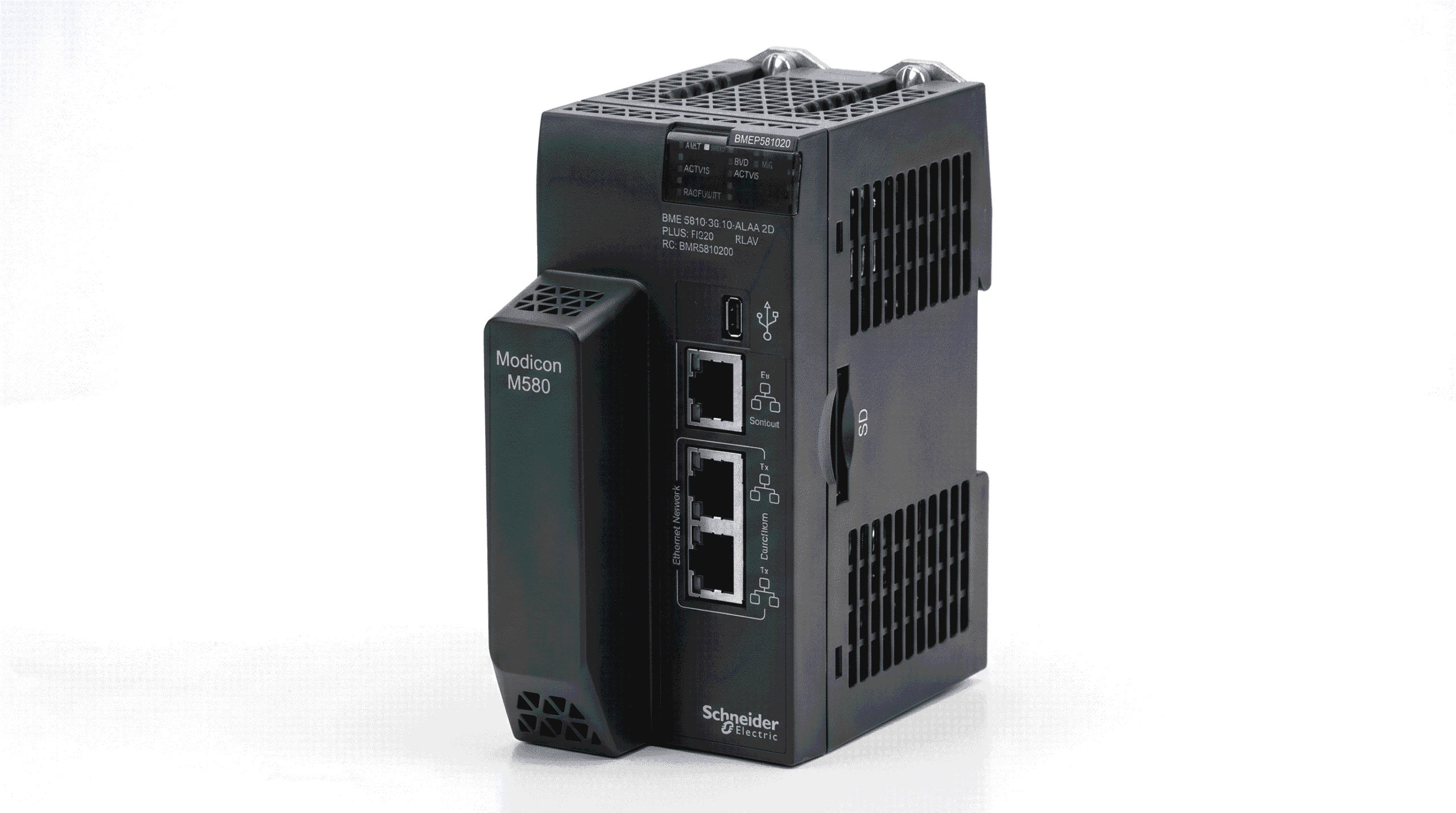

BMEP581020 Modicon M580

BMEP581020 Modicon M580

Original price was: $1,105.00.Current price is: $850.00.

The bmep581020 is a PLC Processor for industrial automation, available at PLCHMI Shop with fast worldwide shipping and a genuine product guarantee.

3 in stock

Free shipping on orders over $5000!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Category: Tag:

Description

Main
range of product
Modicon M580
product or component type
Processor module
product specific application
For severe environments
supply
Internal power supply via rack
Complementary
number of racks
4
Local I/O processor capacity (discrete)
1024 I/O
Local I/O processor capacity (analog)
256 I/O
Number of application specific channel (local rack)
36
application specific I/O
Serial link
Accurate time stamping
Motion control
Counter
SSI encoder
HART
checks
Process control
control channels
Programmable loops
integrated connection type
USB type mini B
1 Ethernet TCP/IP service port
2 Ethernet TCP/IP device network
number of distributed equipment
64
communication module processor capacity
2 Ethernet communication module
8 AS-Interface module
communication service
DIO scanner
memory description
Integrated RAM 4 MB program
Integrated RAM 384 kB data
Expandable flash 4 GB data storage
Integrated RAM 10 kB system memory
application structure
1 cyclic/periodic master task
64 event tasks
1 periodic fast task
2 auxiliary tasks
number of instructions per ms
7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
10 Kinst/ms 100 % Boolean
current consumption
270 mA 24 V DC
MTBF reliability
600000 H
marking
CE
status LED
1 LED green download in progress (DL)
1 LED red memory card or CPU flash fault (BACKUP)
1 LED green/red ETH MS (Ethernet port configuration status)
1 LED green/red Eth NS (Ethernet network status)
1 LED green processor running (RUN)
1 LED red I/O module fault (I/O)
1 LED red processor or system fault (ERR)
product weight
1.87 lb(US) (0.849 kg)
Environment
vibration resistance
3 gn
shock resistance
30 gn
ambient air temperature for operation
-13…158 °F (-25…70 °C)
ambient air temperature for storage
-40…185 °F (-40…85 °C)
operating altitude
0…6561.68 ft (0…2000 m)
2000…5000 m (with derating factor)
relative humidity
5…95 % 55 °C conforming to without condensation
IP degree of protection
IP20
directives
2014/30/EU – electromagnetic compatibility
2014/35/EU – low voltage directive
2012/19/EU – WEEE directive
standards
EN 61000-6-4
EN 61010-2-201
EN 61000-6-2
EN 61131-2
protective treatment
Conformal coating
environmental characteristic
Gas resistant class Gx
Gas resistant class 3C4
Dust resistant class 3S4
Sand resistant class 3S4
Salt resistant level 2
Mold growth resistant class 3B2
Fungal spore resistant class 3B2
product certifications
CSA
EAC
CE
RCM
IEC-Ex
UL
Merchant Navy
ATEX
